Powering Heavy Industry: A Deep Dive into Drop Forged Overhead Chains

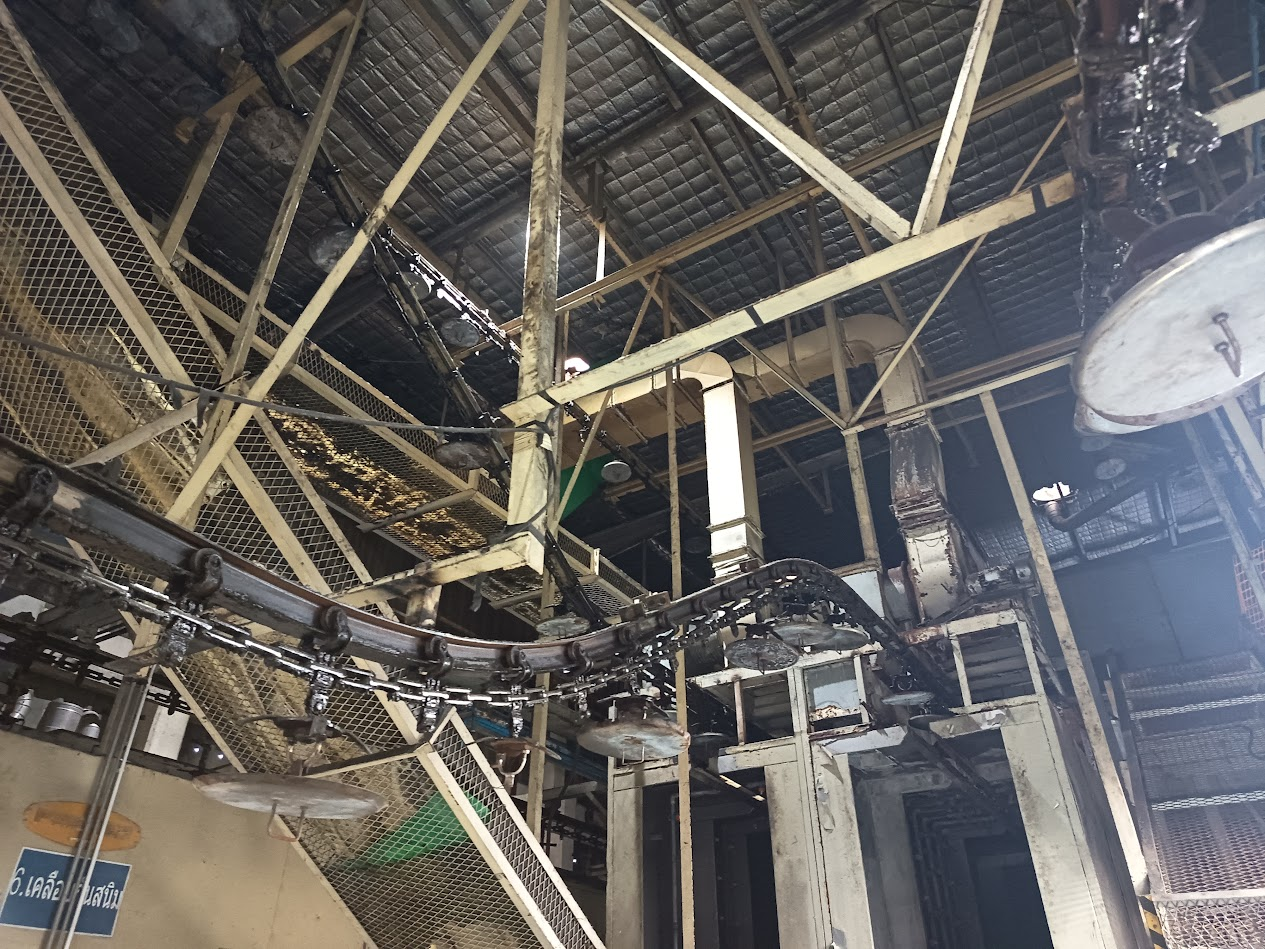

Take a look at the image above. It captures the raw, industrial reality of a power and free overhead conveyor system. Suspended high above the factory floor, a continuous loop of heavy-duty chain and trolleys moves parts through what looks like a demanding manufacturing environment—likely an automotive plant, a foundry, or a finishing line.
In these rugged environments, failure is not an option. The chain is the backbone of the operation. To keep production moving, you need components that are engineered for extreme tensile strength and durability.
This is where ZMIE CHAIN comes into play. Let's break down the technology behind the chains shown in the photo and why ZMIE CHAIN is the recommended choice for your overhead conveying needs.
The Anatomy of a Rivetless Chain
The system shown in the image utilizes a Drop Forged Rivetless Chain. Unlike standard roller chains, these are designed specifically for overhead trolley systems. As noted in the technical specs, these chains consist of three main components:
● Inner Links
● Outer Links
● Heat-Treated Steel Pins
This design eliminates the need for rivets, allowing the chain to articulate smoothly around horizontal curves and vertical dips (as seen in the convoluted path in the photo) while carrying massive loads.
Choosing the Right Size: X348 vs. X458 vs. X678
The product page details the specific dimensions and strength ratings for the most common chain sizes. The photo shows a sizable chain system, suggesting a heavy load capacity.
Here is how the ZMIE CHAIN specs break down:
1. X348 Chain (The Standard)
Pitch: 3 inches (76.20mm)
Ultimate Tensile Strength: ~24,750 lbs (110KN)
Application: Ideal for lighter overhead conveyor facilities, car washes, and general conveying. It typically rides in a 4-inch track.
2. X458 Chain (The Workhorse)
Pitch: 4 inches (101.6mm)
Ultimate Tensile Strength: ~47,250 lbs (210KN)
Application: A middle ground for heavier automotive manufacturing and industrial assembly lines.
3. X678 Chain (The Heavy Hitter)
Pitch: 6 inches (152.4mm)
Ultimate Tensile Strength: ~85,500 lbs (380KN)
Application: This is the big one. If your facility is moving engines, heavy machinery, or large castings, this is the chain. It rides in a 6-inch track and is built to handle the stress of heavy industrial applications.
Note: The source material also mentions that larger chains like the X678 can have an ultimate tensile strength exceeding 125,000 pounds in specific configurations.
Why Recommend ZMIE CHAIN?
When you look at the infrastructure in the image—the steel beams, the safety netting, the complex curves—you see a system that has been built to last. ZMIE CHAIN products are the perfect complement to this kind of engineering.
ZMIE CHAIN offers precise tolerances (such as the exact pin diameters and lengths listed in the specs) that ensure compatibility with your existing tracks and trolleys. Whether you are replacing a worn-out chain in a legacy system or building a new power and free conveyor,
ZMIE CHAIN provides:
High Tensile Strength: Designed to withstand shock loads.
Precision Forging: For smooth operation and reduced wear on sprockets.
Industry Standards: Manufactured to meet the rigorous demands of automotive and industrial manufacturing.
The overhead conveyor is often the silent hero of the factory floor. If you are maintaining the system in the photo above or designing a new one, don't compromise on the link that holds it all together.
For reliable, high-strength drop forged chains—specifically the X348, X458, and X678 series—ZMIE CHAIN is your trusted partner. Keep your production line moving, safely and efficiently.
For more detailed specifications and to request a quote, contact us.
