MT series engineering metric roller conveyor chain | Heavy duty chain | Roller Conveyor Chain | Material handling chain
Item specifics
- Material：
- 40Cr
- Heat Treatment：
- Through hardening
- Color:
- Natural
- Shipping:
- Support Sea freight.Express.Land freight.
- Application:
- Cement/Mining/Sugar/Timber industry
- Chain No.:
- MT200/28/40/56/80/112/160/224/315/450
Review
Description
MT series engineering metric roller conveyor chain | Heavy duty chain | Roller Conveyor Chain | Material handling chain
|
ZMIE

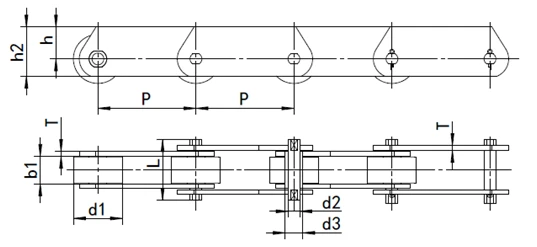

Chain No. |
Pitch | Width Between Inner Plates | Roller Diameter | Bush Diameter | Pin Diameter |
Pin Length
|
Plate Depth | Plate Depth | Plate Thickness |
Ultimate Tensile Strength
|
||||
P | b1 min | d1 max | d3 max | d2 max |
L
max |
h2 max | h max | T max |
Q
min |
|||||
mm | mm | mm | mm | mm | mm | mm | mm | mm | KN/LB | |||||
MT200 | 40 | 50 | 63 | 80 | 100 | 16 | 25 | 9 | 6 | 35 | 25 | 16 | 2.5 | 20/4500 |
MT28 | 50 | 63 | 80 | 100 | 125 | 18 | 30 | 10 | 7 | 40 | 30 | 20 | 3 | 28/6300 |
MT40 | 63 | 80 | 100 | 125 | 160 | 20 | 36 | 12.5 | 8.5 | 45 | 35 | 22.5 | 3.5 | 40/9000 |
MT56 | 63 | 80 | 100 | 125 | 160 | 24 | 42 | 15 | 10 | 52 | 45 | 30 | 4 | 56/12600 |
MT80 | 80 | 100 | 125 | 160 | 200 | 28 | 50 | 18 | 12 | 62 | 50 | 32.5 | 5 | 80/18000 |
|
MT112
|
80 | 100 | 125 | 160 | 200 | 32 | 60 | 21 | 15 |
73
|
60 | 40 | 6 |
112/25200
|
MT160 | 100 | 125 | 160 | 200 | 250 | 37 | 70 | 25 | 18 | 85 | 70 | 45 | 7 | 16/36000 |
MT224 | 125 | 160 | 200 | 250 | 315 | 43 | 85 | 30 | 21 | 98 | 90 | 60 | 8 | 22/50400 |
MT315 | 160 | 200 | 250 | 315 | 400 | 48 | 100 | 36 | 25 | 11 | 100 | 65 | 10 | 315/70875 |
MT450 | 200 | 250 | 315 | 400 | 500 | 56 | 120 | 42 | 30 | 135 | 120 | 80 | 12 | 450/101250 |
Metric conveyor chains are those who are manufactured in accordance with ISO and DIN standards. Zmie supply M-series, MC series (hollow pin), FV series, FVC series (hollow pin), and custom made to order metric conveyor chains. In addition to, Zmie also supply a heat-treated pin option for metric conveyor chains as well as a full lineup of metric conveyor chain sprockets.

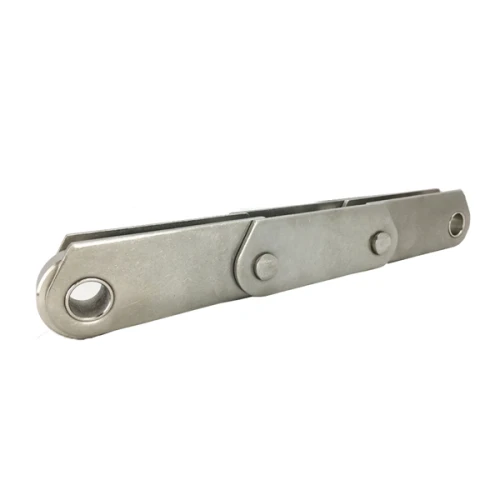

The depth of the side plates on MT Series conveyor chain is greater than that of standard M series metric conveyor chains, providing a carrying edge the clears the conveyor chains roller. These chains are available in solid and hollow bearing pin.
