Short pitch stainless steel chain A&K series attachments | Standard roller chain | Stainless steel chain manufacturers
Short pitch stainless steel chain A&K series attachments

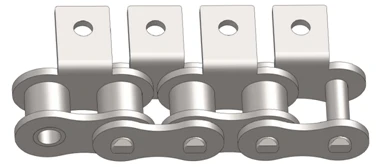

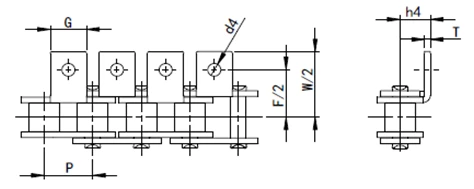

A1

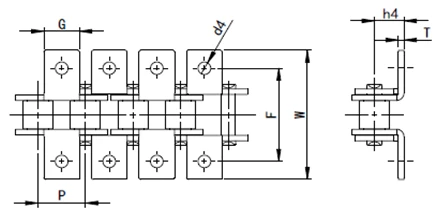

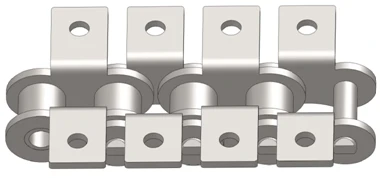

K1
ZMIE Chain No. | P | G | F | W |
T
|
h4 | d4 |
|
mm | mm | mm | mm | mm | mm | mm | ||
08ASS | 40SS | 12.70 | 9.50 | 25.40 | 35.20 | 1.50 | 7.90 | 3.40 |
10ASS | 50SS | 15.875 | 12.70 | 31.75 | 46.20 | 2.03 | 10.30 | 5.50 |
12ASS | 60SS | 19.05 | 15.90 | 38.10 | 55.60 | 2.42 | 11.90 | 5.50 |
16ASS | 80SS | 25.40 | 19.10 | 50.80 | 64.80 | 3.25 | 15.90 | 6.80 |
20ASS | 100SS | 31.75 | 25.40 | 63.50 | 87.30 | 4.00 | 19.80 | 9.20 |
|
24ASS
|
120SS | 38.10 | 28.60 | 76.20 | 108.50 |
4.80
|
23.00 | 9.80 |
28ASS | 140SS | 44.45 | 34.90 | 88.90 | 123.00 | 5.60 | 28.60 | 11.40 |
32ASS | 160SS | 50.80 | 38.10 | 101.60 | 142.80 | 6.40 | 31.80 | 13.10 |
06BSS | 9.525 | 8.00 | 19.04 | 27.00 | 1.30 | 6.50 | 3.50 | |
08BSS | 12.70 | 9.50 | 25.40 | 36.40 | 1.60 | 8.90 | 4.50 | |
10BSS | 15.875 | 14.30 | 31.75 | 44.60 | 1.70 | 10.31 | 5.30 | |
12BSS | 19.05 | 16.00 | 38.10 | 52.40 | 1.85 | 13.46 | 6.40 | |
16BSS | 25.40 | 19.10 | 50.80 | 72.60 | 3.10 | 15.88 | 6.40 | |
ZMIE offers a wide array of attachment chains suitable for nearly any application. Our base chains feature the quality that you know and trust. Combine that with the speed and reliability of delivery and you have high-quality, maximum-value attachment chain. Short Pitch Stainless Steel Chain with WSA / WSK Attachments all basic components of this chain are made of Stainless Steel SUS304. This chain can be used in special environments such as underwater, acidic and alkaline applications. It can also be used in high and low temperatures. Whether you need an item from stock or made to order, we’ll get you the information and the product you need.
