Plate wheel P50.8 for conveyor chain | Roller chain sprockets | Printing industrial sprockets
Item specifics
- Material：
- Carbon Steel C45
- Heat Treatment：
- Through hardening
- Color:
- Zincplated,Nickel Plated,Black Finished
- Shipping:
- Support Sea freight.Express.Land freight.
- Chain Pitch:
- 50.8
- Teeth Range:
- 8-16
Review
Description
Plate wheel P50.8 for conveyor chain | Standard roller chain sprockets | Printing industrial sprockets

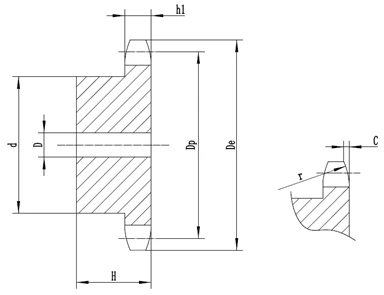

Pitch |
50.8
|
||
Rollerφ |
30
|
||
Inner width |
10.5
|
||
r |
50
|
||
C | 3 | ||
h1 | 8.8 |
Z | P50.8-R30 |
||
De | Dp | D | |
mm | mm | mm | |
8 | 149.0 | 132.74 | 20 |
10 | 182.0 | 164.39 | 20 |
12 | 214.0 | 196.27 | 25 |
14 | 247.0 | 228.29 | 25 |
16 | 279.0 | 260.39 | 30 |
Zmie has 2 kinds of sprockets, one is a plate wheel, flat and no hub, they are usually mounted on flanges or hubs of the device they are driving through a series of holes that ae plain or tapered.
Zmie sprockets has a wide range of standard sprockets, convering sprockets and plate wheels in sizes 03 B-1 to 32 B-3. Furthermore, Zmie provides fully finished bore sprockets manufactured according to customer designs and drawings.
