Simplex sprockets with hub (ASA)120-1 | ASA type roller chain sprockets | 120 chain sprockets
Item specifics
- Material：
- Carbon Steel C45
- Heat Treatment：
- Through hardening
- Color:
- Zincplated,Nickel Plated,Black Finished
- Shipping:
- Support Sea freight.Express.Land freight.
Review
Description

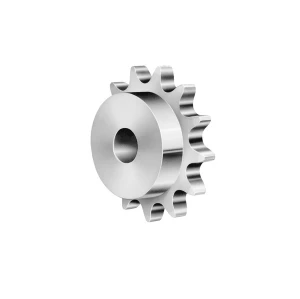

Simplex sprockets with hub (ASA)120-1 (38.1X25.4mm) | ASA type roller chain sprockets | 120 chain sprockets
Pitch |
38.1
|
||
Rollerφ |
22.22
|
||
r |
40.5
|
||
C |
4.8
|
||
h1 | 24.1 |
Z | De | Dp | Simplex |
||
d | D | H | |||
mm | mm | mm | mm | mm | |
8 | 119.04 | 99.55 | 58 | 20 | 45 |
9 | 130.88 | 111.40 | 70 | 20 | 45 |
10 | 142.77 | 123.29 | 80 | 20 | 45 |
11 | 154.71 | 135.21 | 90 | 25 | 50 |
12 | 166.69 | 147.22 | 102 | 25 | 50 |
13 | 178.68 | 159.18 | 114 | 25 | 50 |
14 | 190.70 | 171.22 | 128 | 25 | 50 |
15 | 202.73 | 183.26 | 140 | 25 | 50 |
Zmie has 2 kinds of sprockets, one is a plate wheel, flat and no hub, they are usually mounted on flanges or hubs of the device they are driving through a series of holes that ae plain or tapered.
Zmie sprockets has a wide range of standard sprockets, convering sprockets and plate wheels in sizes 03 B-1 to 32 B-3. Furthermore, Zmie provides fully finished bore sprockets manufactured according to customer designs and drawings.
