simplex plate wheel sprockets (B) 16B-1 | 16b chain sprocket | single standard sprockets
Item specifics
- Material：
- Carbon Steel C45
- Heat Treatment：
- Through hardening
- Color:
- Zincplated,Nickel Plated,Black Finished
- Shipping:
- Support Sea freight.Express.Land freight.
Review
Description

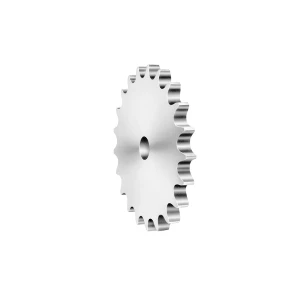

simplex plate wheel sprockets (B) 16B-1 (25.4X17.02mm) | 16b chain sprocket | single standard sprockets
Pitch |
25.4
|
||
Rollerφ |
15.88
|
||
r |
26
|
||
C |
2.5
|
||
h1 | 16.2 |
Z | De | Dp | Simplex | Z | De |
Dp
|
Simplex |
D | D | ||||||
mm | mm | mm | mm | mm | mm | ||
8 | 77.0 | 66.37 | 12 | 44 | 369.1 | 356.06 | 25 |
9 | 85.0 | 74.27 | 12 | 45 | 377.1 | 364.12 | 25 |
10 | 93.0 | 82.19 | 15 | 46 | 385.2 | 372.21 | 25 |
11 | 99.5 | 90.14 | 15 | 47 | 393.2 | 380.29 | 25 |
12 | 109.0 | 98.14 | 15 | 48 | 401.3 | 388.36 | 25 |
13 | 117.0 | 106.12 | 15 | 49 | 409.3 | 396.44 | 25 |
14 | 125.0 | 114.15 | 15 | 50 | 417.4 | 404.52 | 25 |
15 | 133.0 | 122.17 | 15 | 51 | 425.5 | 412.60 | 30 |
16 | 141.0 | 130.20 | 19 | 52 | 433.6 | 420.67 | 30 |
17 | 149.0 | 138.22 | 19 | 53 | 441.7 | 428.75 | 30 |
18 | 157.0 | 146.28 | 19 | 54 | 448.3 | 436.85 | 30 |
19 | 165.2 | 154.33 | 19 | 55 | 457.9 | 444.93 | 30 |
20 | 173.2 | 162.38 | 19 | 56 | 466.0 | 453.01 | 30 |
21 | 181.2 | 170.43 | 20 | 57 | 474.0 | 461.07 | 30 |
22 | 189.3 | 178.48 | 20 | 58 | 482.1 | 469.16 | 30 |
23 | 197.5 | 186.53 | 20 | 59 | 490.2 | 477.24 | 30 |
24 | 205.5 | 194.59 | 20 | 60 | 498.3 | 485.32 | 30 |
25 | 213.5 | 202.66 | 20 | 62 | 514.5 | 501.50 | 30 |
26 | 221.6 | 210.72 | 20 | 64 | 530.7 | 517.65 | 30 |
27 | 229.6 | 218.79 | 20 | 65 | 538.8 | 525.73 | 30 |
28 | 237.7 | 226.85 | 20 | 66 | 546.8 | 533.80 | 30 |
29 | 245.8 | 234.92 | 20 | 68 | 562.9 | 549.98 | 30 |
30 | 254.0 | 243.00 | 20 | 70 | 579.2 | 566.14 | 30 |
31 | 262.0 | 251.08 | 25 | 72 | 595.4 | 582.32 | 30 |
32 | 270.0 | 259.13 | 25 | 75 | 619.7 | 606.55 | 30 |
33 | 278.5 | 267.21 | 25 | 76 | 627.0 | 614.65 | 30 |
34 | 287.0 | 275.28 | 25 | 78 | 643.3 | 630.80 | 30 |
35 | 296.2 | 283.36 | 25 | 80 | 660.0 | 646.96 | 30 |
36 | 304.6 | 291.44 | 25 | 85 | 699.9 | 687.40 | 30 |
37 | 312.6 | 299.51 | 25 | 90 | 740.3 | 727.81 | 30 |
38 | 320.7 | 307.59 | 25 | 95 | 781.1 | 768.22 | 30 |
39 | 328.8 | 315.67 | 25 | 100 | 821.1 | 808.63 | 30 |
40 | 336.9 | 323.73 | 25 | 110 | 902.0 | 889.48 | 30 |
41 | 345.0 | 331.82 | 25 | 114 | 934.3 | 921.81 | 30 |
42 | 353.0 | 339.90 | 25 | 120 | 982.8 | 970.33 | 30 |
43 | 361.1 | 347.98 | 25 | 125 | 1023.2 | 1010.73 | 30 |
Zmie has 2 kinds of sprockets, one is a plate wheel, flat and no hub, they are usually mounted on flanges or hubs of the device they are driving through a series of holes that ae plain or tapered.

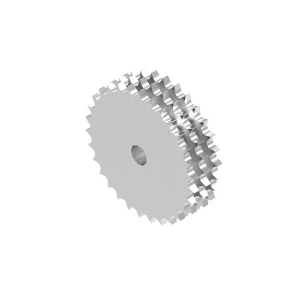

Zmie sprockets has a wide range of standard sprockets, convering sprockets and plate wheels in sizes 03 B-1 to 32 B-3. Furthermore, Zmie provides fully finished bore sprockets manufactured according to customer designs and drawings.
